BASIC FLUID PROPERTIES AND HYDROSTATICS
S2-FM-202
- Bench-top unit.
- This unit allows pressure gauges to be accurately calibrated up to 300 bar, with an accuracy of ± 0.015 %
Description
Pressure measurements are critical in industries like chemical processing, where precise calibration of pressure gauges is essential. The standard method for calibrating these gauges involves using a deadweight tester, which balances known masses against the force of an unknown pressure on a piston.

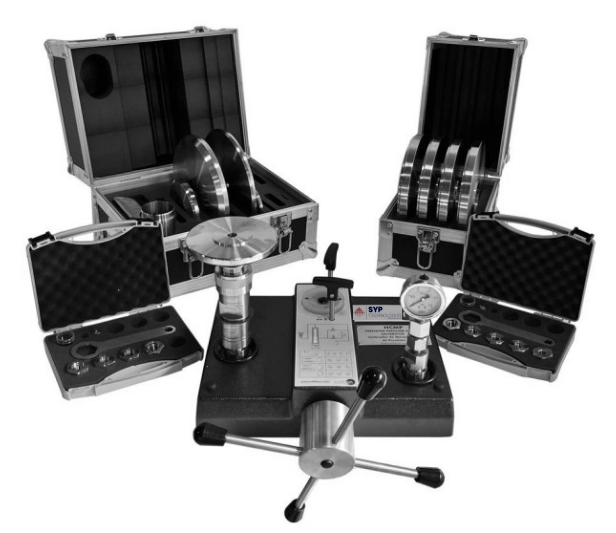

The Precision Pressure Gauge Calibrator is a portable deadweight tester designed for calibrating gauges up to 300 bar with an accuracy of ±0.015% of the reading. It operates by adjusting the fluid volume inside the calibrator using a jackscrew, which increases pressure until equilibrium is achieved between the pressure at the gauge and the piston. This unit uses mineral oil as the hydraulic fluid and includes a spirit level, rotating foot studs, a set of weights, gauge adapters, spare seals, and a bottle of oil. Each unit comes with a laboratory calibration certificate for the piston and a traceable accuracy certificate.
Specification
This unit mainly consists of:
- Priming pump.
- Spindle pump for pressure generation and fine adjustment.
- Piston allows calibration over a wide range of pressures.
- Spirit level (or bubble level) and rotating foot studs are provided to enable the student to level the unit.
- Mineral oil is used as the hydraulic fluid.
- Set of weights, a set of adapters for the pressure gauges, spare seals and a bottle of oil are supplied.
- Carrying cases for the unit and weights. Pressure gauges.
Dimensions
- LxWxH: 500x350x400mm
- Weight: approx. 5kg
- Set of weights: – Dimensions: 500 x 350 x 400 mm approx., Weights: 45 Kg approx.
