MTPS & TPS
S1-HT-101
- Versatile Testing: Supports MTPS for single-sided testing and TPS for testing between two identical samples.
- Wide Thermal Range: Operates from -50°C to 200°C (MTPS) and up to 80°C (TPS), measuring conductivity from 0.03 to 100 W/mK and diffusivity from 0.01 to 50 mm²/s.
- High Precision: Provides ±2% precision and ±5% accuracy, ensuring reliable lab results.
- Pressure Handling: Measures under pressures from atmospheric to 15 MPa with a specialized pressure chamber.
- Sample Versatility: Accommodates solids, pastes, and powders across various sizes.
- Portable Design: Compact and durable, suited for multiple lab environments.
For further details, download the complete PDF brochure
Description
The S1-HT-101 Thermal Conductivity Measurement Equipment is an advanced, fully integrated system designed for precise and reliable measurement of thermal conductivity and associated thermal properties for a wide range of materials both liquid, powders and solids, including concrete, cementitious materials, and geological samples. This system employs both the Modified Transient Plane Source (MTPS) and Transient Plane Source (TPS) testing methods to offer flexibility in testing, providing accurate results across different sample types and conditions.
The equipment is a portable, benchtop solution that can be easily installed in a standard laboratory setting, with no need for additional hardware. Its design allows for measurements at various temperatures, pressures, and sample sizes, making it suitable for diverse applications in research and industry.
SYP Technologies has engineered this system to meet stringent UK and international standards for laboratory equipment, ensuring top-tier performance, safety, and compliance with modern laboratory requirements.

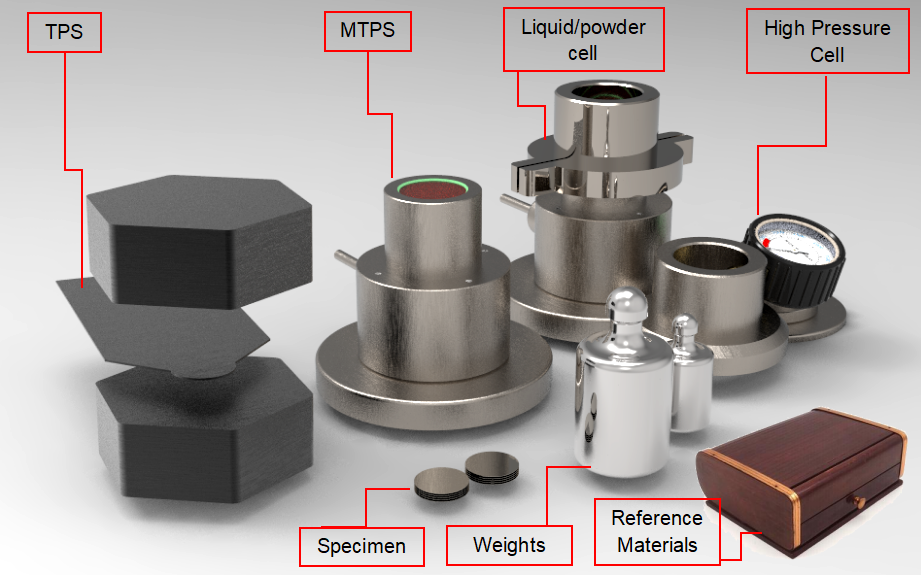

The Modified Transient Plane Source (MTPS) technique measures the thermal conductivity and effusivity of materials using a single-sided, interfacial sensor. This sensor applies a short heat pulse to the sample, typically for 1 to 4 seconds and measure the temperature profile at the interface of sensor and tested material to accurately determine thermal properties. The technique directly measures thermal conductivity and effusivity, offering a comprehensive view of the sample’s heat transfer properties.
FEATURES
- Versatile Testing Capabilities:
- Supports Modified Transient Plane Source (MTPS) for single-sided testing, ideal for various solid and geological samples.
- Supports Transient Plane Source (TPS) testing, allowing for testing between two identical sample pieces.
Wide Thermal Range:
- Operates across a broad temperature range from -50°C to 200°C for MTPS, and up to 80°C for TPS.
- Capable of handling extreme thermal conductivity ranges from 0.03 to 100 W/mK and thermal diffusivity from 0.01 to 50 mm²/s.
High Precision and Accuracy:
- Delivers a minimum of ±2% precision and ±5% accuracy, meeting the stringent repeatability and reliability requirements of modern laboratories.
Pressure Handling:
- The system can measure thermal conductivity under pressures ranging from atmospheric to 13.78 MPausing special designed pressure chamber, suitable for simulating real-world conditions.
Sample Versatility:
- Can measure solids, pastes, and powders for a range of sample sizes. Maximum sample size is determined by material properties and laboratory setup.

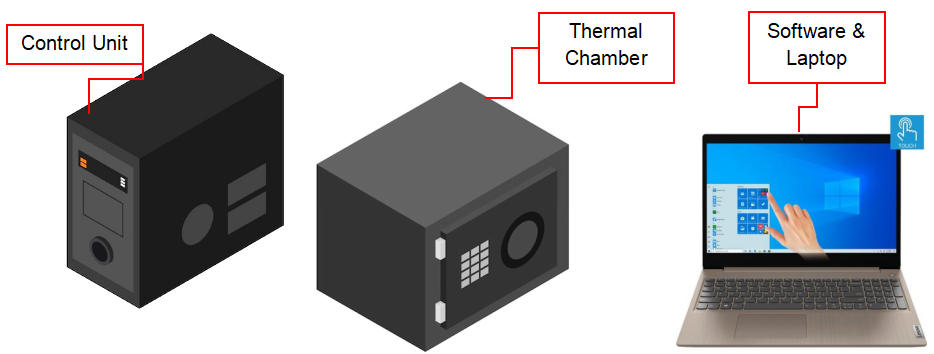

Portable and Integrated Design:
- Compact, benchtop system that is fully portable. It includes all necessary components, interfaces, and wiring to function in a typical laboratory environment.
- Designed with durability in mind, featuring protective housings to withstand routine relocations and operations in different laboratories.
Electrical Compliance:
- All electrical components are enclosed and compliant with the latest international regulations, ensuring safety and reliability in laboratory conditions.
- Built-in indicator lights for status monitoring and fault indications.
- Certification of electrical safety will be provided.
Interfaces:
- Suitable for connection to external monitors, network, mouse, and keyboard for enhanced functionality and data access.
User Training and Support:
- Comprehensive training provided to staff for operation, calibration, and maintenance of the system.
- Includes detailed user manuals and maintenance guides.
- 1-year full warranty with the option for extended service agreements, ensuring long-term support and cost-effective maintenance.
Installation and Commissioning:
- SYP Technologies provides on-site installation, commissioning, and initial calibration, ensuring the equipment is fully operational and ready for immediate use.
Tailored installation services based on the specific laboratory setup and requirements.
SPECIFICATION
MTPS (Modified Transient Plane Source) Capability:
Our MTPS system is in compliance with the required specifications reproduced here for reference.
The equipment must be able to perform single-sided MTPS tests on concrete, cementitious materials, and geological samples. Ensure the equipment can measure these with a precision of ±2% and an accuracy of ±5%, with a temperature range of -50°C to 200°C.
| Test Method | Temperature Range (°C) | Thermal Conductivity Range (W/mK) | Thermal Diffusivity Range (mm²/s) | Specific Heat Capacity (J/kg-K) | Thermal Effusivity Range (W√s/m²K) | Precision (%) | Accuracy (%) |
| MTPS (Modified Transient Plane Source) | -50 to 200 | 0.03 to 100 | 0.01 to 50 | 250 to 2500 | 20 to 20000 | ±2 | ±5 |
| TPS (Transient Plane Source) | -50 to 80 | 0.03 to 100 | 0.01 to 50 | 250 to 2500 | Not applicable | ±2 | ±5 |
DIMENSIONS
- L x W xH: 600mm x 500mm x 400 mm Approx.
- Weight: 25 kg Max. Approx.
